Flanges, Pipe Fittings & Special Forgings

BUTT-WELD FITTINGS:

Stainless Steel Fittings for High Temperature as per ASTM A 403 – Gr. WP 304L, 304H, 304LN, 309, 309S, 309H, 310S, 310H, 316, 316L, 316H, 316LN, 317, 317L, 321, 321H, 347, 347H, 348, 348H etc.
Alloy Steel Fittings for Moderate & Elevated Temperature Services as per ASTM A 234 – Gr. WP1, WP2, WP5, WP9, WP11, WP12, WP 22 & WP 91 in CL-1, CL-2 & CL-3.
Carbon Steel Fittings for Moderate & Elevated Temperature as per ASTM A 234 – Gr. WPB & WPC.
Carbon Steel Fittings for Low Temperature as per ASTM A 420 Gr. WPL 3 & WPL 6.
Butt-Welding Fittings such as Long/Short Radius Elbows, Equal/Unequal Tees, Concentric/Eccentric Reducers, Caps, Cross, Short/Long Neck Stub-Ends, Long Piggable Bends – 3D/5D/6D/8D upto 22D, S/J/U/Expansion Bends & Swivels are manufactured according to ANSI – B 16.9, B 16.28 & MSS SP-43 etc.
SPECIAL METALS like INCONEL, INCOLOY, HASTELLOY, MONEL, NICKEL, NIMONIC, ALLOY-20, ALLOY-904L, TITANIUM, TANTALUM & NON-FERROUS METALS like ALUMINIUM, COPPER, BRASS, CUPRO-NICKEL.

FORGED FITTINGS & FLANGES:

Stainless Steel Forged Socket Weld & Screwed Fittings & Flanges for High Temperature Services as per ASTM A 182 – Gr. F 304L, 304H, 304LN, 309, 309S, 309H, 310S, 310H, 316, 316L, 316H, 316LN, 317, 317L, 321, 321H, 347, 347H, 348, 348H etc.
Alloy Steel Forged Socket Weld & Screwed Fittings & Flanges for High Temperature Services as per ASTM A 182 – Gr. F1, F2, F5, F9, F11, F12, F22 & F91.
Carbon Steel Forged Socket Weld & Screwed Fittings & Flanges for Elevated Temperature as per ASTM A 105.
Carbon Steel Forged Socket Weld & Screwed Fittings & Flanges for Low Temperature Services as per ASTM A 350 – Gr. LF1, LF2, LF3, LF5, LF6 & LF9.

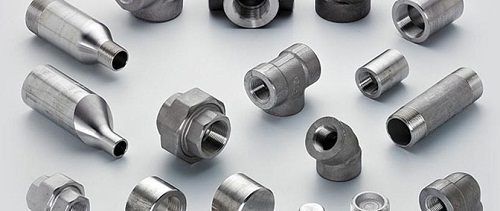

Forged Fittings such as Elbows, Equal/Unequal Tees, Concentric/Eccentric Reducers, Full/Half Couplings, Reducing Couplings, Caps, Cross, Unions, Hex/Reducing/Flash Bushings, Plugs, Nipples, Swage Nipples, Reducer Inserts, Boss, Laterals, Street Elbows & Outlets/Branch Connections (Weldolets, Thredolets, Sockolets, Flexolets, Latrolets, Elbolets, Sweepolets, Insert Weldolets, Nippolets, Brazolets, Coupolets) are manufactured according to ANSI – B 16.11, & MSS SP-97 etc.

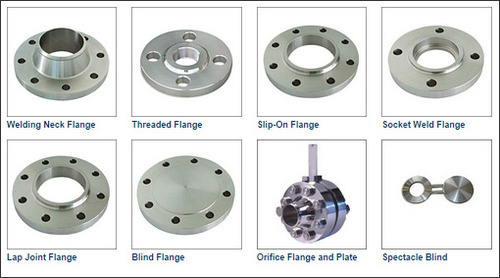

Flanges such as SORF, SOFF, SOLJ, SWRF, SWFF, WNRF, WNFF, WNRTJ, LWNRF, BLRF, BLFF, Threaded, Spectacle Blind, Orifice & Studding Outlet are manufactured according to ANSI – B 16.9, B 16.28 & MSS SP-43 etc.

SPECIAL FORGINGS & HEAT EXCHANGER ACCESSORIES

SPECIAL FORGED NOZZLES

HEAT EXCHANGER TUBE SHEET & BAFFLES
